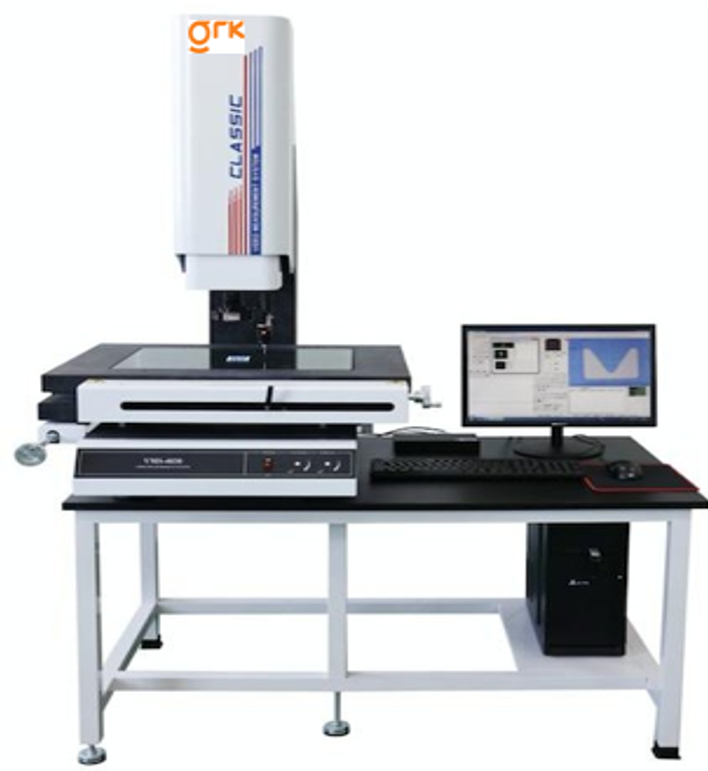

Description

Product Features

1)The base, column and worktable are all made by 00 grade Jinan granite, with stable structure and reliable accuracy.

2)XYZ axis are all used Taiwan original precision linear guide, equipped with toothless friction transmission group, make the equipment positioning accurate, no noise, no vibration.

3)The grating ruler adopts the trusted high-resolution profile ruler of the old domestic military industry brand.

4)High-quality optical system and high-resolution camera, clear picture, making the measurement more accurate.

5)Probe and laser can be added to realize simple three-dimensional measurement

6)Both upper and lower light sources adopt LED, with long service life, and software-assisted dimming to achieve precise measurement especially the workpiece straightening function.

7)With RS-232 interface connected to the computer and specialized measuring software, it can deal with the mapping graphics and all the measurement data or graphic can be directly converted to Word, Excel, Auto CAD reports.





Product Specification

Measuring Mode	Video type
Accuracy	99.9%
Color	Black
Magnification	24X-156X (12-312X is available)
CCD Camera	430,000 Pixels high definition Sony Chip CCD
Repeatability	3um
XYZ Resolution	0.001
XYZ axis Travel	150*100*220(mm)
Automatic Grade	Automatic
Display	Digital
Power Source	Electric
Voltage	220 V
Minimum Order Quantity	1
